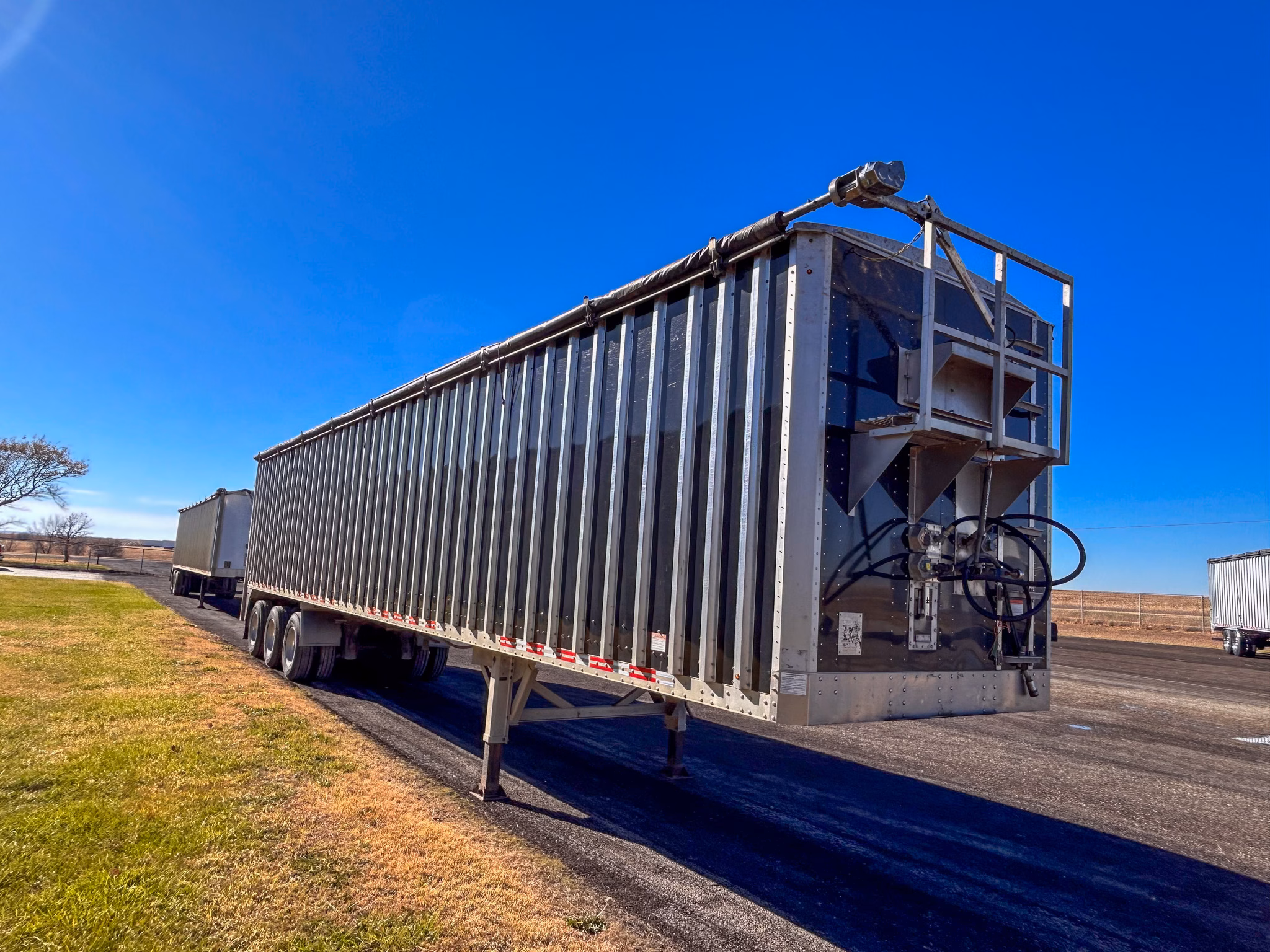

Unleash the Power of Efficiency with the Wilkens X-treme Wide Belt® Trailer!
Designed specifically for feed, seed, and fertilizer, the Wilkens X-treme Wide Belt® trailer is engineered to be the fastest unloading trailer on the market. With its innovative design, you can say goodbye to wind drag, chains, flaps, and product bridging, ensuring superior cleanout so you get down the road and unloaded faster than ever before!
Call us today to customize your new Wilkens X-treme Wide Belt® trailer and experience the ultimate in efficiency and performance!
Why Choose the X-treme Wide Belt®?
- Light Weight: Easy to maneuver and fuel-efficient.
- Fast Unloading: Save time with the fastest unloading systems available.
- Superior Clean Out: Ensures no residual material is left behind.
- No Product Bridging: Helps to reduce unload time.
- Minimal Road Contamination: Keeps your load secure and the roads clean.
- High Cube Design: Maximizes your load capacity.
- Lower Center of Gravity: Enhances stability and safety on the road.
Specifications and Options:
- Length: Available up to 53′ long.
- Side & Overall Height: Choose between 9′ and 14′ 6″ tall.
- Open-Top: Options include Flat Top Hinge or Cathedral up to 16″ arch.
- Width: A spacious 99″ wide.
- 5th Wheel Height: Customizable, with 49″ as standard.
- Kingpin Setting: Adjustable from 27″ to 36″.
- Upper Coupler: Domex with Grease Saver Rods.
- Panels: .063″ white with full height liner. (Aluminum 5052 H32)
- Post Centers: Options of 14.75″ or 21.75″.
- Crossmembers: Steel construction.
- Crossmember Centers: 12″ spacing for added strength.
- Landing Gear: Jost 2-Speed, with optional bolt-on aluminum gear and frame.
- Subframe: Slider rail or fixed axle with I-beam.
- Undercarriage Finish: Black undercoat for protection.
- Suspension: AR Slider, fixed, or spread with up to 4 axles.
- Axles: TP with centers ranging from 49″ to 128″.
- Manual Air Dump: Mounted on slider or landing gear.
- Hub & Drum: Steel hub with cast drum, optional centrifuse or disc brakes.
- Brakes: 16.5″ x 7″ Q-Series, with optional disc brakes.
- Rim: Hub-Pilot Unimount.
- Wheels: Steel with white finish, or Alcoa polished & Dura-Bright.
- Tires: Standard Goodyear, with other brands available.
- ABS Brakes: 1S/2M for two wheels.
- Mud-Flaps: Anti-spray and anti-sail.
- Drive Unit: Wilkens belt drive.

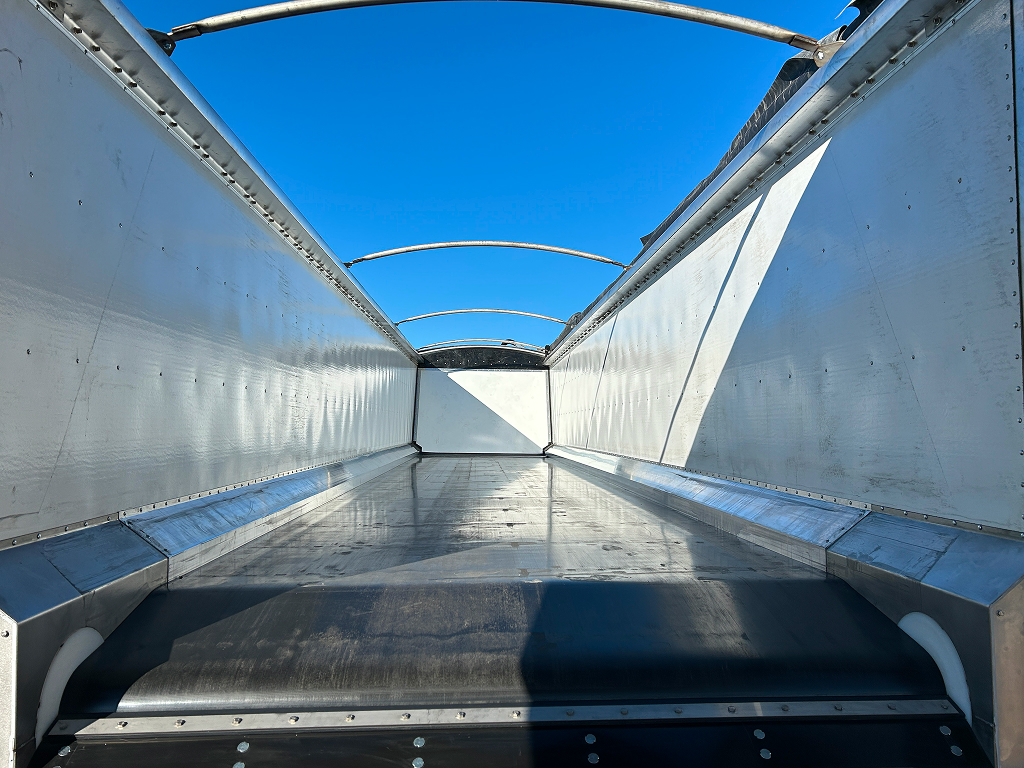

- Flooring: Belt.
- Subfloor: Aluminum.
- Hydraulic Hoses: (2) 3/4″ x 10′.
- Hydraulic Fittings: Choice of options.
- Filter: High pressure.
- Slope Board: Standard slope.
- Side Seal: Aluminum.
- Nose: 4 1/4″ inverted finish.
- Catwalk: Optional.
- Ladders: Standard ladder or cast steps.
- Rear Unit: Stainless steel.
- Bumper: Stainless steel DOT safety.
- Doors: Double barn door or single swing top hinge.
- Door Latch: Steel rods or manual bottom latch, with optional stainless steel.
- Tarps: 18 oz. choice of color, with optional 22 oz. vinyl/mesh reinforced.
- Tarp System: Shur-Lok, with optional electric tarp or standard rollover.
- Tarp Crank: Front or rear, with optional remote for electric tarp.
- Tarp Bows: Powder coated steel or stainless steel.
- Tarp Bib: Standard on rear unit.
- Air Scale: Built-in, with optional 3rd glad hand scales.
- Electrical: (1) Grote main 7-way or (2) main, with different styles and pins available.
- Lighting: Grote high count LED, with choice of options.
Additional Options:
- Rear header turn signals
- Hubodometer
- Corded & cordless remotes
- Vents
- Broom & shovel holders
- Tire carriers
- Tarp supports
- Cargo lights
- Back-up lights
- Self-contained hydraulic units
- Product guards
- Illuminated flap hangers
- Toolboxes
- and MANY MORE
Call us today to customize your X-treme Wide Belt® trailer and experience the ultimate in efficiency and performance!
